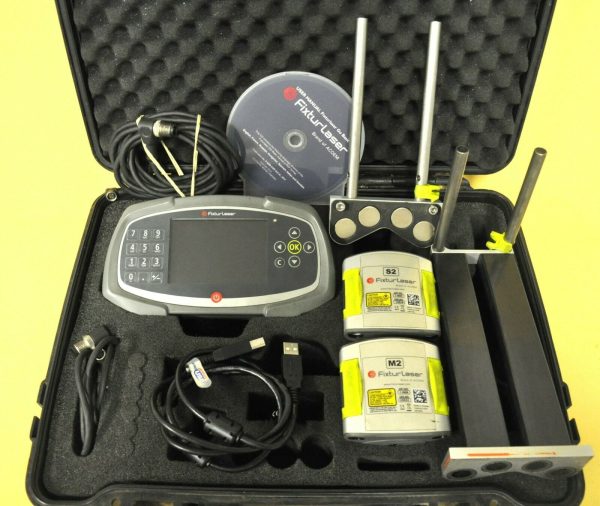

The all-digital wireless FIXTURLASER ECO is an entry-level system dedicated to horizontal shaft alignment. With wireless sensor units, a 4” color display, rechargeable batteries, and an IP65 design that withstands harsh environments, you have a laser alignment system at an affordable price!

FixturLaser ECO Shaft Alignment System Tool Vibralign Kit

What you get, when you buy a FIXTURLASER ECO system:

• Integrated Bluetooth

• Lifetime warranty

• Pre-mounted sensors

• A 4″ color screen

• VertiZontal™ Moves

• Screen Flip

• 8 hours battery time, continuous use

• CCD sensors technology

• Live values during adjustment – True Live™

• IP65 classified

• Slimmest smart sensors on the market

vertizontal moves

The adaptive user interface will guide you throughout the measurement and alignment process. We are especially proud of the function – VertiZontal Moves – where you only have to measure once before making the required vertical and horizontal adjustments. The VertiZontal Moves is an innovative and time-saving feature.

specification

FIXTURLASER ECO
Weight including all standard parts	4,8 kg (10,6 lbs) (Incl. case, excl. carton box.)
Storage temp	-20 to 70°C
Long term storage temp	Room temp. 18 to 28°C (64 to 82°F)
Case
Material	High Impact ABS Plastic
Weight (empty)	2,5 kg (5,5 lbs)
Environmental protection	Dust-, water- (5m), and airtight with air pressure compensation valve
Drop-test (empty)	3 m onto concrete floor
Storage Temp(empty)	-40 to +80 °C  (-40 to 176°F)
Dimension	415 mm x 325 mm x 180mm (16” x 13” x x 7”)
Display Unit
Housing Material	ABS plastic
Operating Temp	0 to 50°C
Storage Temp	-20 to 70°C
Long term storage temp	Room temp. 18 to 28°C (64 to 82°F)
Relative humidity	10 – 90%
Weight	346 g
Dimensions	180,9 x 105,7 x 33,9 mm (7,1” x 4,2” x 1,3”)
Environmental protection	IP 65
Flash storage memory	500 Mb
Display	Color TFT-LCD backlit
Display size	4” (102 mm) diagonal (84 x 56 mm)
Display resolution	400 x 272 pixels
Color depth	16 000 000 colors
Interface	Membrane Switch Keyboard
Peripherals	1 USB micro port (IP 67)
Wireless communication	Bluetooth (2,4 GHz)
Power supply	Rechargeable Li-Ion battery or external power supply
Operating time	8 hours continuous use
Battery Charging time (system off, room temperature)	8 h
Battery Charging Temp	0 to 40°C
Digital Laser Sensors
Housing Material	Anodized Aluminum frame and ABS plastic over-molded with TPE rubber
Operating Temp	0 to 50°C  (32 to 122°F)
Storage Temp	-20 to 70°C (-4 to 158°F)
Long term storage temp	Room temp. 18 to 28°C  (64 to 82°F)
Battery Charging Temp	0 to 40°C   (32 to 104°F)
Relative humidity	10 – 90%
Weight	M: 200 g (7,1 oz) with battery S: 188 g (6,6 oz) with battery
Dimensions	86 mm x 77 mm x 33 mm (3,4” x 3,0” x x 1,3”)
Environmental protection	IP 65
Laser	650 nm class II diode laser
Laser power	< 1 mW
Measurement distance	Up to 3 m
Detector	Digital line sensor
Detector active length	20 mm
Displayed resolution	0,01 mm
Measurement accuracy	1% ± 1 digit
Inclinometer resolution	1°
Inclinometer accuracy	±3°
Wireless communication	Bluetooth (2,4 GHz)
Communication range	10 m (33 ft)
Peripherals	1 USB Mini port (IP 67) Charging: 5V, 0,5A
Power supply	Li-Ion battery or external power.
Operating time:	12 hours continuous use (measuring)
Battery Charging time (system off, room temperature)	8 h
LED indicators	Wireless communication, laser transmission, and battery status indicators
Laser safety*
Shaft brackets
Fixture	V-fixture with non-twisting chain, width 20 mm (0,79”)
Material	Anodized aluminum
Shaft diameter	Ø 25-175 mm (1”-6.9”) Ø 25-450 mm (1”-18”) (with extension chains – optional)
Rods:	4 pcs 150 mm (5,9”) optional
Accessories
Tape measure	5 m / 16 ft metric/imperial scale
